Our first level is suitable for those who want to improve sound insulation in a good way without a high degree of insulation being critical. This can be, for example, step sound or to reduce the noise from the neighbor next door. Using fiberglass in combination with our sound damping clips will normally reduce noise by 20-30dB, which in many cases will be sufficient to solve the problem.
We would like to point out that the effect of sound insulation depends on several factors, such as
- Leakage points: Windows, ventilation, doors, etc.
- Flank noise: Noise transmitted through other surfaces in the building, such as floors, walls and ceilings.
- The rigidity of the construction: How well the building carries and dampens noise.
This means that it is not possible to provide an exact reduction in noise before and after measures, even with our most advanced systems. However, our solutions are specified with:
- Rw: Attenuation of airborne noise.
- L’n,w: Reduction of vibration noise.
Both values are specified for each type of surface (wall, ceiling, floor) and the sum of them will affect the end result, which is measured according to Norwegian standard 8175. It is worth noting that lower frequencies are more difficult to isolate, and the lower the frequency you want to attenuate, the more extensive measures will be required.
If you’re unsure where the noise problem lies or how your current solution is working, consider a professional measurement. We measure:
- Airborne noise (DnT,w): Corresponds to Rw, but takes into account real conditions such as leaks and the acoustics of the room.
- Vibration noise (L’n,w): Detects noise that is transmitted via vibrations.
The measurements are performed with class 1 reference equipment and the results are presented in a standardized report according to Norwegian standard 8175.
While such measurements provide valuable insights, they can be costly. That’s why we often recommend prioritizing action over measurement, especially if it’s obvious that action needs to be taken. However, in larger projects or where you are unsure whether the noise is airborne or vibration-based, a measurement can still be useful. For example, if you have a lot of vibration noise, it may be a good idea to brace the joists, which is often recommended anyway.
Our soundproofing systems are designed to handle both airborne noise and vibration noise very effectively. If you want to book a measurement, you can do so here >>.
Remember that you can always upgrade to the next level if you are not satisfied with the result. At level 2, another layer of fiberglass plaster with GreenGlue damping compound is installed between the layers. In addition, a sound door is added, while level 3 includes 2 layers of fiberboard with GreenGlue also on the other side of the wall, a stronger sound door and active, separate ventilation.
Feel free to read our technical documentation / whitepaper, written by our in-house Siv. Ing, Eivind Lygren here for more detailed information and explanation of the various concepts and installation of our systems.
| The product | Estimated DnT,w / noise reduction in dB |
| Standard drywall | 34 |

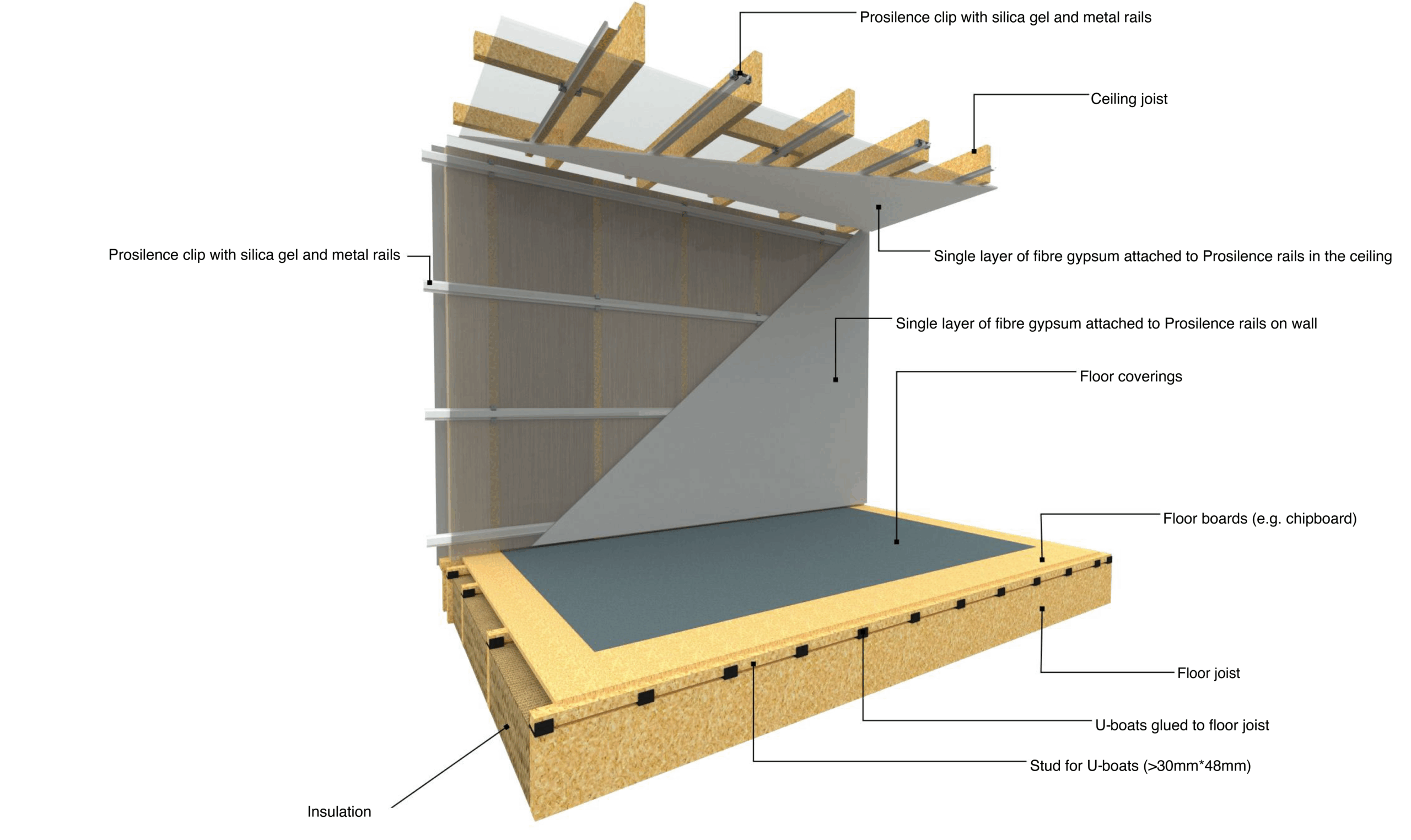

| Level 1 construction with clips and one layer of fiber plaster | 59 |
Calculation of materials
This calculator calculates your estimated material consumption based on the room dimensions you enter. You enter the room dimensions in meters, e.g. 6.4m (length), 4.5m (width) and 2.5m (height). At the bottom of the page, you will find a button to add the configuration to the shopping cart.
If you want our recommended design, this is shown at the top of the configurator. You first select the number of rooms we should design for you and then “1” as the number to add this to the configuration.
In many cases, you only want to calculate the need for one wall or the roof, in which case you simply click away the surfaces you don’t want to calculate for:
| Length (m) | |
| Width (m) | |
| Height (m) |
| Category | Title | Price | Qty per Square | Image | Quantity in order | Total Price |
|---|---|---|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence U-boat Silica Gel Stud Floater BLACK series | €6,02 | 7 |
 |
||
| Surface | ||||||
|
Floor ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | DreamScreen ProSilence Clip for wall and ceiling decoupling/soundproofing BLACK series | €8,06 | 2,3 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | DreamScreen ProSilence 32mm Self Drilling Screw with TORX 100pcs | €20,30 | 0,001 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | DreamScreen ProSilence Furring Channel for Wall and Ceiling Detachment 2m | €18,26 | 1,2 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Greenglue Applicator gun for 830ml tubes | €122,30 | 0,00001 |
 |
||
| Surface | ||||||
|
Floor ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Greenglue Noiseproofing Sealant Tube 830ml | €40,70 | 0,1 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Hunton Fermacell screws for fiber gypsum 3.9x30mm for wood or steel studs 1000pcs | €81,50 | 0,02 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Hunton Fermacell jointing trowel 15kg bucket | €56,00 | 0,05 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Hunton Fermacell paper reinforcement 50m | €25,40 | 0,05 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Hunton Fermacell fiber gypsum 600x2400x12,5mm w. 2 trowel edges | €40,70 | 0,7 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence U-boat Silica Gel Stud Floater BLACK series | €6,02 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 7 |
|
||
| Surface | |||
|
Floor ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence Clip for wall and ceiling decoupling/soundproofing BLACK series | €8,06 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 2,3 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence 32mm Self Drilling Screw with TORX 100pcs | €20,30 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,001 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence Furring Channel for Wall and Ceiling Detachment 2m | €18,26 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 1,2 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Greenglue Applicator gun for 830ml tubes | €122,30 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,00001 |
|
||
| Surface | |||
|
Floor ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Greenglue Noiseproofing Sealant Tube 830ml | €40,70 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,1 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Hunton Fermacell screws for fiber gypsum 3.9x30mm for wood or steel studs 1000pcs | €81,50 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,02 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Hunton Fermacell jointing trowel 15kg bucket | €56,00 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,05 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Hunton Fermacell paper reinforcement 50m | €25,40 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,05 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Hunton Fermacell fiber gypsum 600x2400x12,5mm w. 2 trowel edges | €40,70 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,7 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
