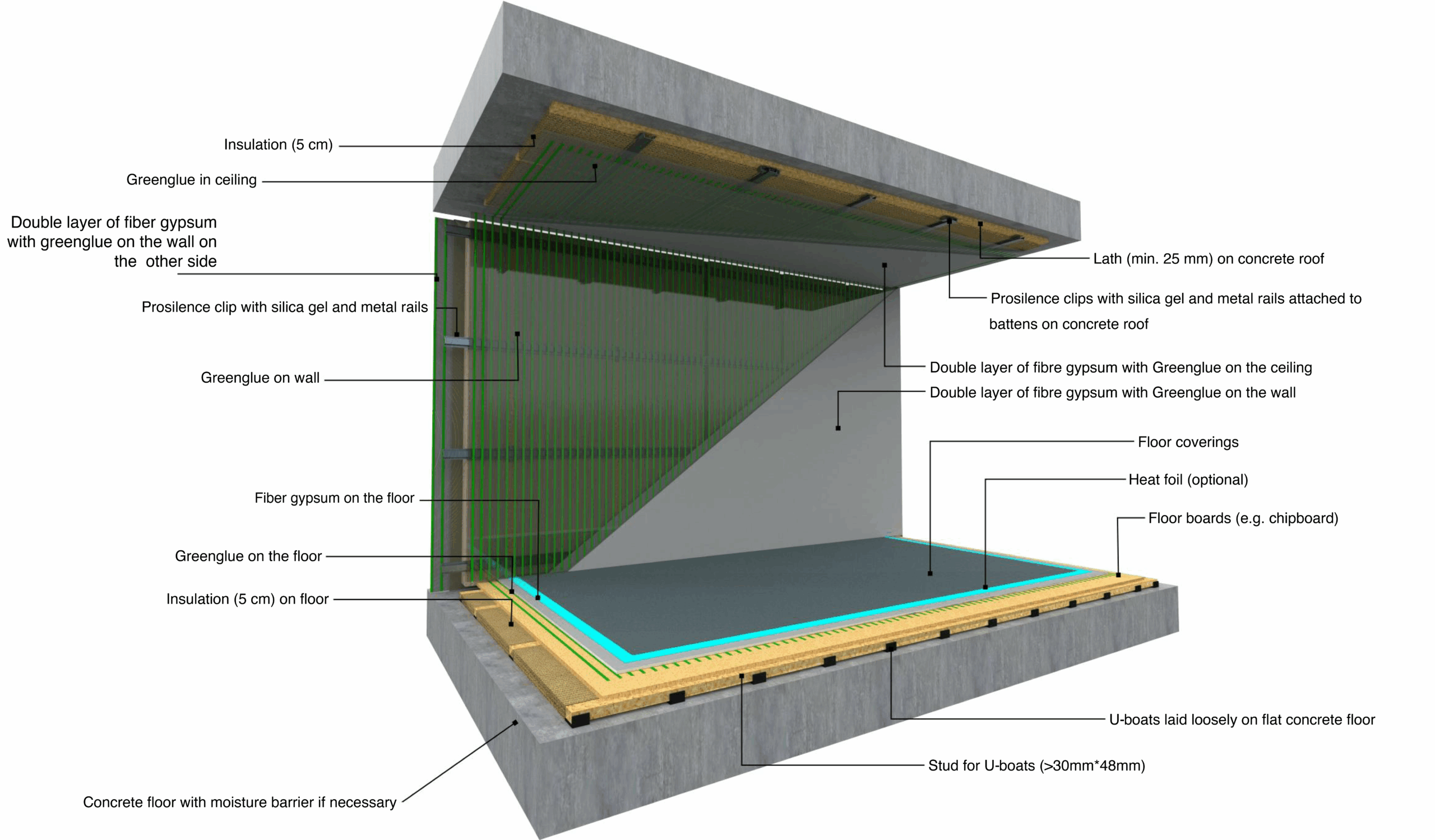

The model shows level 3 with double layers of panels on both sides of the wall, however, level 2 only uses double layers on the inner wall and therefore has a slightly lower insulation effect than level 3.
Level 2 is suitable for those who want to improve sound insulation in a room where a high degree of insulation is more critical. This could be, for example, your child’s gaming room, a fitness room or a bedroom. Using fiberglass in combination with our sound-absorbing clips will normally reduce noise by 30-40 dB, which in many cases will be sufficient to solve the problem.
Ventilation is not included in this level and assumes that the room already has inlet and outlet air installed. You can optionally use a standard damper or mechanical ventilation to the outside wall or open air, but be aware that this may reduce the sound insulation effect. When the damper is open, sound will easily escape, and even when it is closed, some noise may still be transported via these points as they lack specific soundproofing treatment.
In rooms with an acoustic door such as Level 2, the room will be hermetically sealed to maintain optimal sound insulation. This means that no air enters or exits under the door, as it does with ordinary doors. That’s why it’s important to plan for ventilation. Alternatively, ventilate the room regularly, keep the door open at night, or leave the damper open if the room will be used for overnight stays.
Good ventilation is crucial for the comfort and use of a soundproof room – so make sure this is part of your planning!
We would like to point out that the effect of sound insulation depends on several factors, such as
- Leakage points: Windows, ventilation, doors, etc.
- Flank noise: Noise transmitted through other surfaces in the building, such as floors, walls and ceilings.
- The rigidity of the construction: How well the building carries and dampens noise.
This means that it is not possible to provide an exact reduction in noise before and after measures, even with our most advanced systems. However, our solutions are specified with:
- Rw: Attenuation of airborne noise.
- L’n,w: Reduction of vibration noise.
Both values are specified for each type of surface (wall, ceiling, floor) and the sum of them will affect the end result, which is measured according to Norwegian standard 8175. It is worth noting that lower frequencies are more difficult to isolate, and the lower the frequency you want to attenuate, the more extensive measures will be required.
If you’re unsure where the noise problem lies or how your current solution is working, consider a professional measurement. We measure:
- Airborne noise (DnT,w): Corresponds to Rw, but takes into account real conditions such as leaks and the acoustics of the room.
- Vibration noise (L’n,w): Detects noise that is transmitted via vibrations.
The measurements are performed with class 1 reference equipment and the results are presented in a standardized report according to Norwegian standard 8175.
While such measurements provide valuable insights, they can be costly. That’s why we often recommend prioritizing action over measurement, especially if it’s obvious that action needs to be taken. However, in larger projects or where you are unsure whether the noise is airborne or vibration-based, a measurement can still be useful. For example, if you have a lot of vibration noise, it may be a good idea to brace the joists, which is often recommended anyway.
Our soundproofing systems are designed to handle both airborne noise and vibration noise very effectively. If you want to book a measurement, you can do so here >>.
Remember that you can always upgrade to the next level if you are not satisfied with the result. Level 3 also includes 2 layers of fiber plaster with GreenGlue also on the other side of the wall, a stronger acoustic door and active, separate ventilation.
Feel free to read our technical documentation / whitepaper, written by our in-house Siv. Ing, Eivind Lygren here for more detailed information and explanation of the various concepts and installation of our systems.
| The product | Estimated DnT,w / noise reduction in dB |
| Standard drywall | 34 |
| Level 2 construction with clips and two layers of fiberglass with GreenGlue | 70 |
Calculation of materials
As a result of limitations in the calculator, fiber gypsum / GreenGlue is not calculated for the floor (which is laid on top of the floor sheet metal), but we still recommend that you add this manually when ordering at this measure level as it significantly increases the insulation value of the floor.
This calculator calculates your estimated material consumption based on the room dimensions you enter. You enter the room dimensions in meters, e.g. 6.4m (length), 4.5m (width) and 2.5m (height). At the bottom of the page, you will find a button to add the configuration to the shopping cart.
If you want our recommended design, this is shown at the top of the configurator. You first select the number of rooms we should design for you and then “1” as the number to add this to the configuration.
In many cases, you only want to calculate the need for one wall or the roof, in which case you simply click away the surfaces you don’t want to calculate for:
| Length (m) | |
| Width (m) | |
| Height (m) |
| Category | Title | Price | Qty per Square | Image | Quantity in order | Total Price |
|---|---|---|---|---|---|---|
| Design and inspection | Design of soundproof buildings | €1 019,90 |
 |
|||
| Surface | ||||||
|
TOTAL AREA:
|
||||||

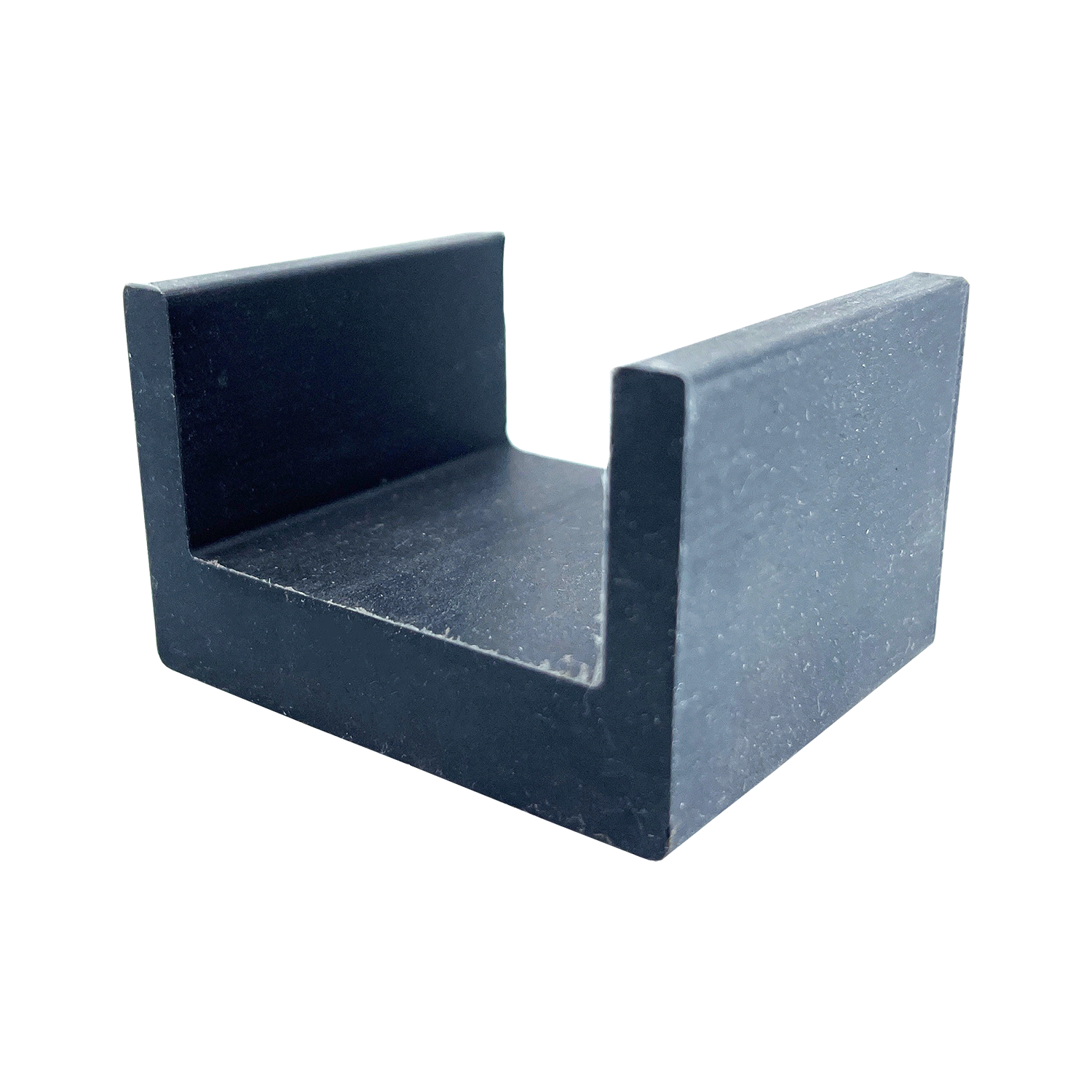

| Room-in-room decoupling | DreamScreen ProSilence U-boat Silica Gel Stud Floater BLACK series | €6,02 | 7 |
 |
||
| Surface | ||||||
|
Floor ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | DreamScreen ProSilence Clip for wall and ceiling decoupling/soundproofing BLACK series | €8,06 | 2,3 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||

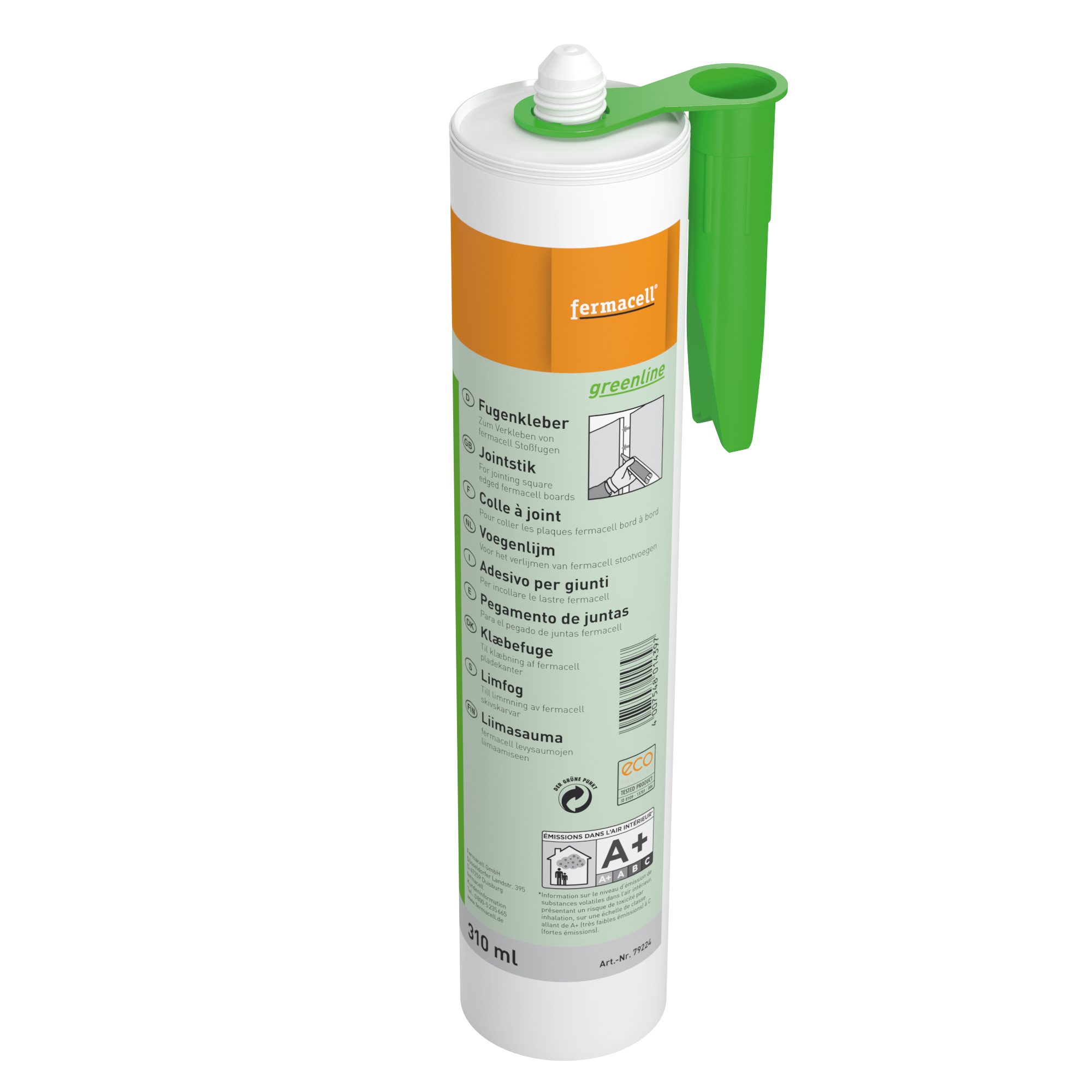

| Room-in-room decoupling | Hunton Fermacell Greenline adhesive for fiber plaster without trowel edge 310ml | €71,30 | 0,05 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Hunton Fermacell fiber gypsum 600x2400x12.5mm without trowel edges | €40,70 | 1,4 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Sound doors | Daloc T34 43dB Sound door SPECIAL CONFIGURED | €1 631,90 | 0,00001 |
 |
||
| Surface | ||||||
|
Floor ()
TOTAL AREA:
|
||||||

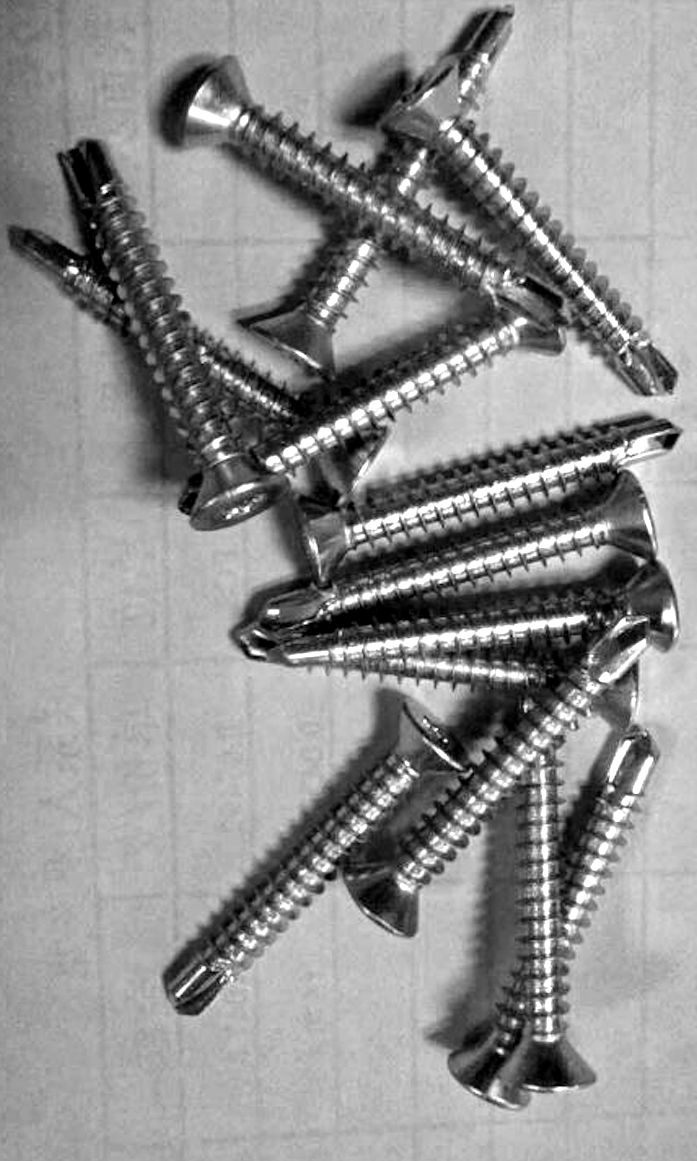

| Room-in-room decoupling | DreamScreen ProSilence 32mm Self Drilling Screw with TORX 100pcs | €20,30 | 0,001 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||

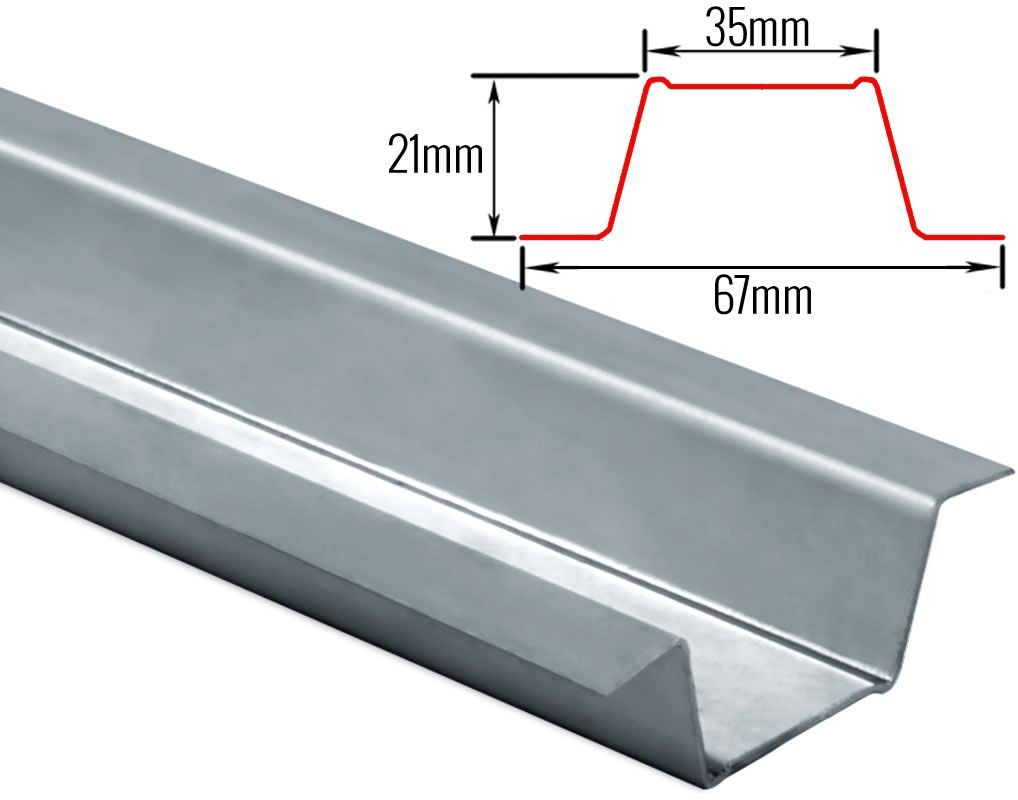

| Room-in-room decoupling | DreamScreen ProSilence Furring Channel for Wall and Ceiling Detachment 2m | €18,26 | 1,2 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Greenglue Soundproofing compound Pail (bucket) 18,9l | €713,90 | 0,04 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Greenglue Applicator gun for 830ml tubes | €122,30 | 0,00001 |
 |
||
| Surface | ||||||
|
Floor ()
TOTAL AREA:
|
||||||
| Room-in-room decoupling | Greenglue Noiseproofing Sealant Tube 830ml | €40,70 | 0,1 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
||||||

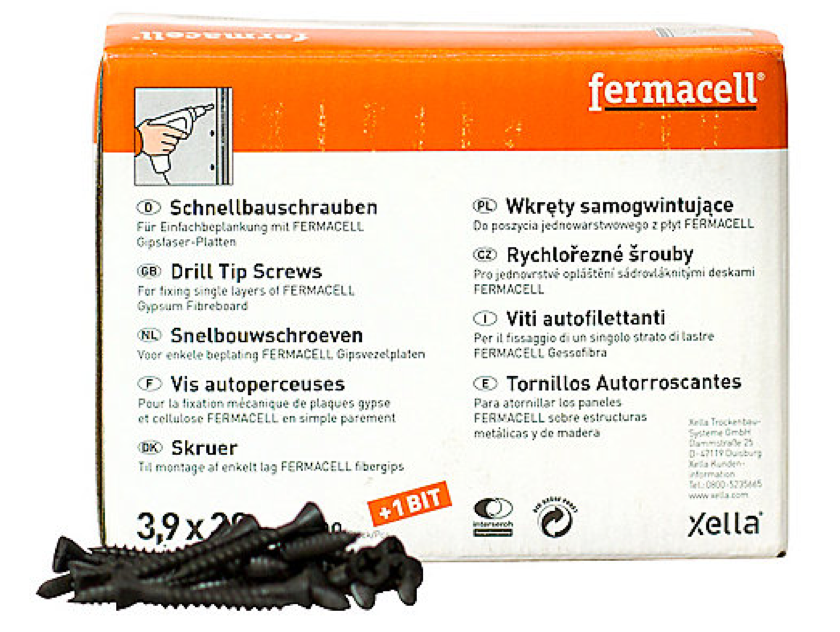

| Room-in-room decoupling | Hunton Fermacell screws for fiber gypsum 3.9x30mm for wood or steel studs 1000pcs | €81,50 | 0,02 |
 |
||
| Surface | ||||||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Ceiling ()
TOTAL AREA:
|
||||||
| Category | Title | Price | |
|---|---|---|---|
| Design and inspection | Design of soundproof buildings | €1 019,90 | |
| Qty per Square | Image | Quantity in order | Total Price |
|
|
|||
| Surface | |||
|
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence U-boat Silica Gel Stud Floater BLACK series | €6,02 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 7 |
|
||
| Surface | |||
|
Floor ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence Clip for wall and ceiling decoupling/soundproofing BLACK series | €8,06 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 2,3 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Hunton Fermacell Greenline adhesive for fiber plaster without trowel edge 310ml | €71,30 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,05 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Hunton Fermacell fiber gypsum 600x2400x12.5mm without trowel edges | €40,70 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 1,4 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Sound doors | Daloc T34 43dB Sound door SPECIAL CONFIGURED | €1 631,90 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,00001 |
|
||
| Surface | |||
|
Floor ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence 32mm Self Drilling Screw with TORX 100pcs | €20,30 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,001 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | DreamScreen ProSilence Furring Channel for Wall and Ceiling Detachment 2m | €18,26 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 1,2 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Greenglue Soundproofing compound Pail (bucket) 18,9l | €713,90 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,04 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Greenglue Applicator gun for 830ml tubes | €122,30 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,00001 |
|
||
| Surface | |||
|
Floor ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Greenglue Noiseproofing Sealant Tube 830ml | €40,70 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,1 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Wall 4 ()
Ceiling ()
TOTAL AREA:
|
|||
| Category | Title | Price | |
|---|---|---|---|
| Room-in-room decoupling | Hunton Fermacell screws for fiber gypsum 3.9x30mm for wood or steel studs 1000pcs | €81,50 | |
| Qty per Square | Image | Quantity in order | Total Price |
| 0,02 |
|
||
| Surface | |||
|
Wall 1 ()
Wall 2 ()
Wall 3 ()
Ceiling ()
TOTAL AREA:
|
|||
