Daloc S30 50dB Steel sound door 90×210 left hinged black

NEW! S30 in 50dB version is Daloc’s top range of acoustic doors. This is the door for those who place high demands on sound insulation, where the acoustic door can often be the weak point. Daloc is a professional door manufacturer that delivers doors of the highest quality. The doors are often used in public buildings, but are just as suitable for a hi-end home theater. The only thing that dampens more than these is a double door (tandem door) of the same type, which can also be supplied on request. However, even with a double door, the insulation value only increases by 3dB (from 50->53dB) which means that this solution is very well soundproofed even with a single door.

This is a stocked, ready-to-deliver door that must be picked up from the warehouse, but it can also be manufactured to other special dimensions and delivered directly to you in 3-6 weeks. Get in touch for a quote!

Product sheet >>

Standard included in the delivery:

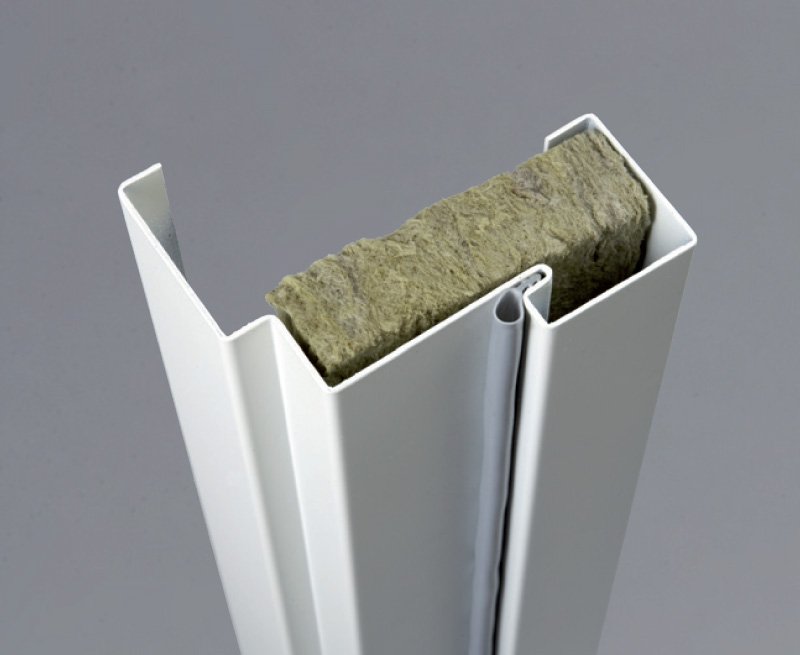

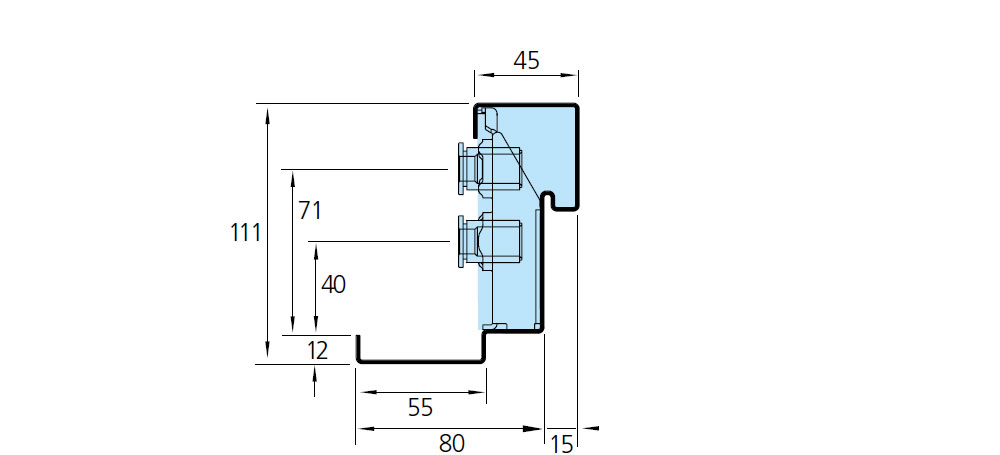

• Frame type 41 (steel, black: NCS S9000-N):

Fixed alignment on the hinge side.

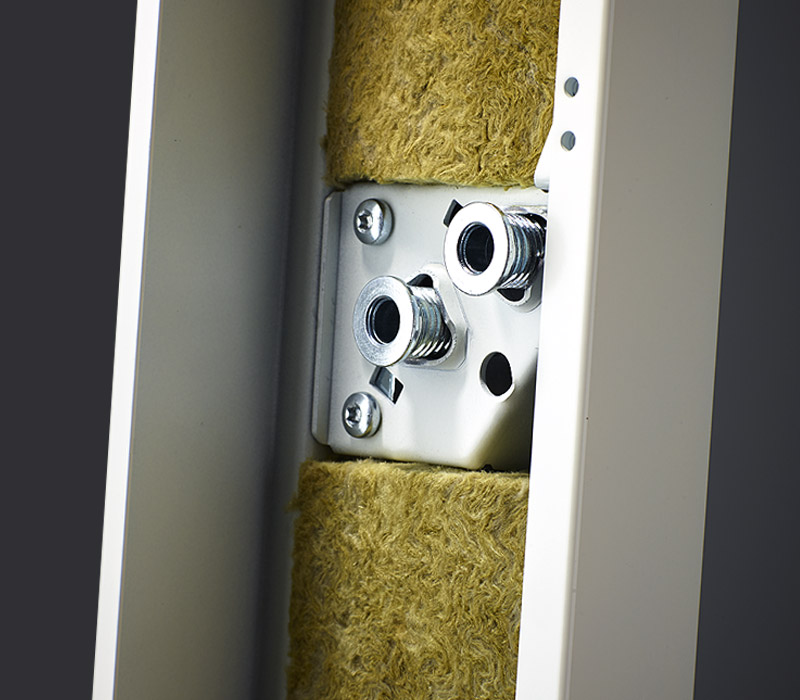

The frame is installed using the adjustable frame sleeves. The frame sleeves are adjusted with an Allen key (12 mm). The frame must be sealed with insulation or equivalent (not included) and then sealed with sealant to achieve the relevant fire, sound and smoke tightness class.

In order to achieve the right function and meet the requirements, it is very important that the doors are installed correctly and with the right screws.

We recommend the following: In concrete walls, masonry walls and wooden stud walls, use the concrete screw Fischer FFS 7.5×72 (art 521547) with or without nylon plug 10×50, and in steel stud walls use the screw Würth Zebra pias 6.3 x 38 (art 0205 63 38).

These are included in our complete installation kits, which are supplied on request.

• Threshold (steel)
• Lock box Assa 310.

1. Size

• 90×210

2. Hengsling

• Left-hinged, i.e. the door is hinged on the left side when you pull it towards you.

3. Karm

• Wall thickness / frame 100mm

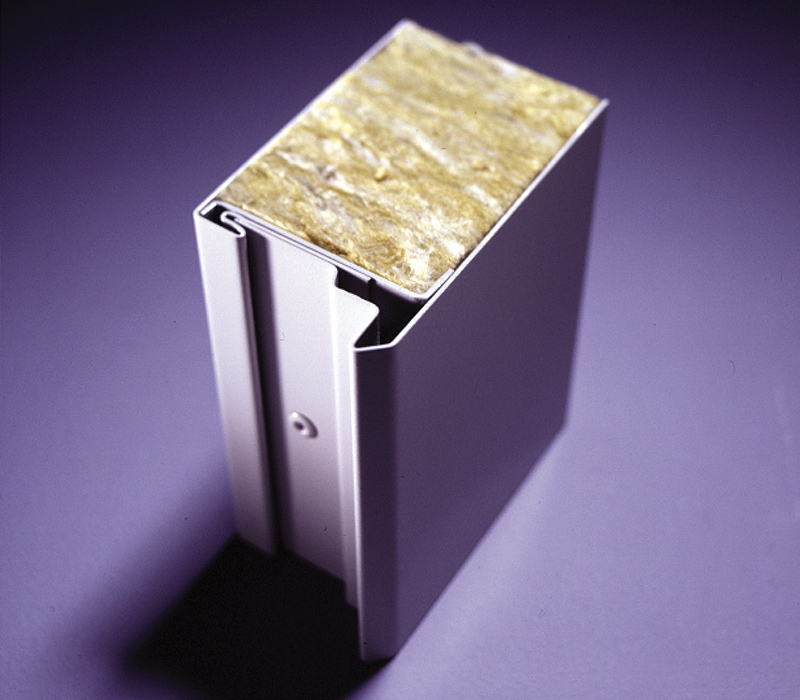

4. Door leaf (the door itself)

• Black painted (Color code: NCS S9000-N)

5. Lock box

• Assa 310
• Door handle and knob not included, we suggest e.g. Yale’s electronic locks, which can be purchased at standard hardware stores.
