DREAMSCREEN PROSILENCE CEILING JOIST HANGER

NEW! With DreamScreen’s new Ceiling Joist Hanger, you can soundproof your ceiling with virtually no loss of headroom! This heavy-duty bracket is made of 3mm thick steel and heavily dimensioned to withstand heavy loads (>200kg). Used in combination with our ProSilence Clips (sold separately). Requires joists with standard wooden beams (type 48×198 or similar).

If you also have floor joists, you can also consider the DREAMSCREEN PROSILENCE FLOOR JOIST BRACKET, which allows you to soundproof your floor almost completely without loss of height.

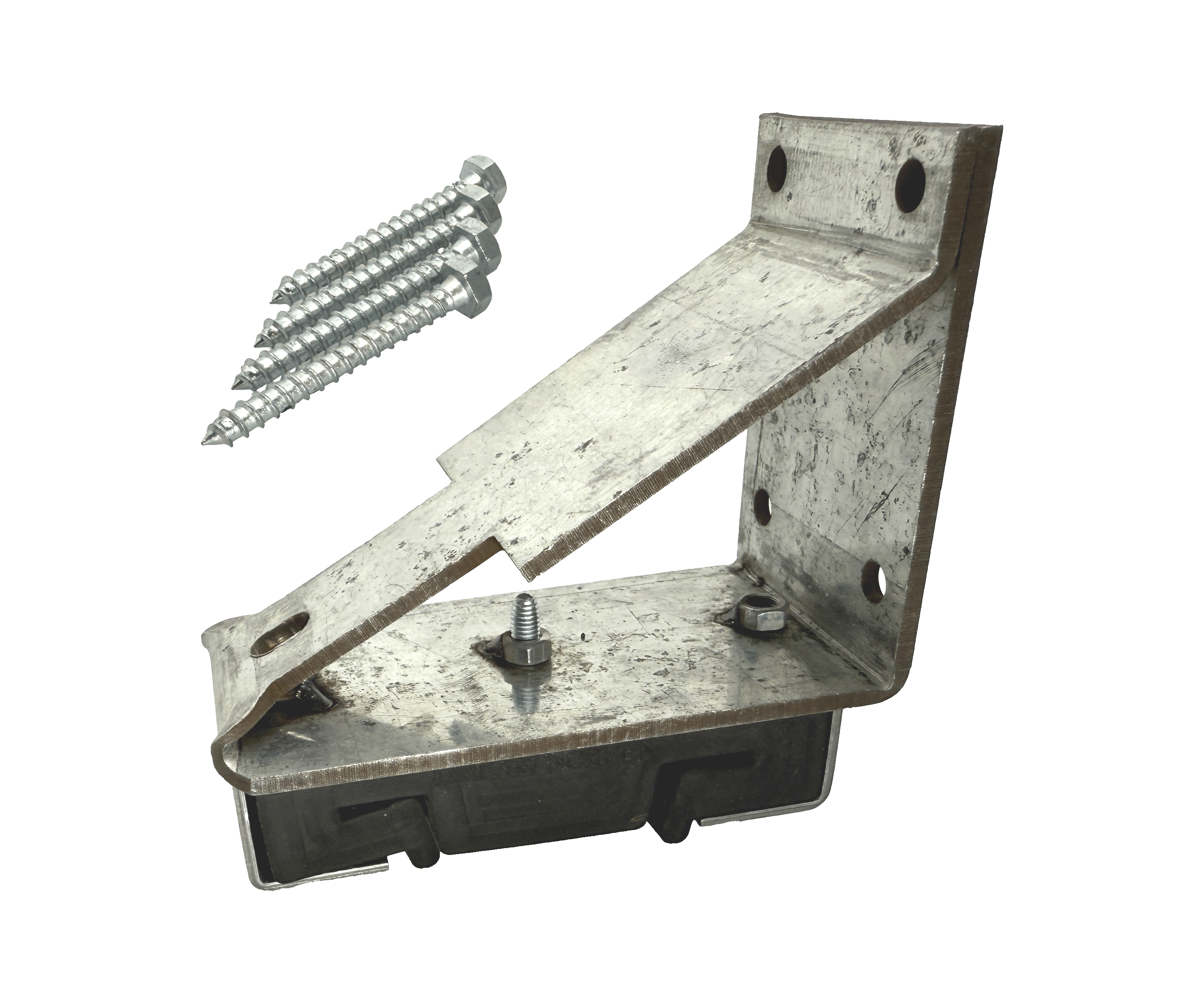

What’s included:

1. The bracket
2. 4pcs heavy-duty wood screws for attachment to the joist
3. 3pcs machine screws for fastening ProSilence Clipset

DREAMSCREEN CEILING JOIST HANGER is used in the ceiling and attached directly to the joist with the supplied wood screws. By using this system, you only lose around 5 mm of ceiling height, compared with around 35 mm if you attach Clips directly to the joist. Can also be combined with DREAMSCREEN PROSILENCE FLOOR JOIST BRACKET if you also have joists in the floor.

The sketch shows the structure using DREAMSCREEN CEILING JOIST HANGER in the ceiling in combination with DREAMSCREEN PROSILENCE FLOOR JOIST BRACKET on the floor for effective sound insulation without losing headroom. The system is recommended to be installed in combination with fiber gypsum and GreenGlue for additional sound insulation.
